XTS3100 series Beidou network time synchronization server

      The newly upgraded XTS3100 series Beidou network time synchronization server can provide safe, reliable, and precise industrial level time services for large and medium-sized network systems in fields such as finance, government, energy, transportation, electricity, national defense and military industry. The product is composed of high-precision/highly sensitive Beidou/GPS receivers, high-precision constant temperature crystal oscillators/rubidium atomic clocks, highly reliable industrial grade server motherboards, high brightness large size color touch LCD screens, and high-quality industrial chassis. It is internally equipped with an efficient server level operating system, and adopts satellite timing, clock taming, network synchronization, frequency measurement and control technology with independent intellectual property rights of Xinsheng Technology, The product has low overall power consumption, reliable and stable operation, and can be applied to data centers, application systems, process control management systems, e-commerce systems, and database backup and maintenance systems. It has been successfully applied in multiple fields.

Product Features

      （1） Can be used as a primary network time server or as a secondary network time server

      （2） Supports dual reference sources of Beidou satellite and GPS satellite, and can use GPS and Beidou combination timing mode, or specify single use of Beidou satellite system timing

      （3） High precision, high security, and high security industrial grade NTP network time synchronization server

      （4） The domestically produced Xinchuang network time server model is compatible with domestic processors such as Feiteng (standard configuration), Megachip, Haiguang, and Longxin, as well as operating systems such as Qilin, Tongxin, and OpenEuler

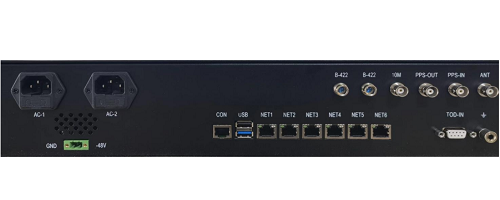

      （5） Supports six independent 10/100/1000 Mbps adaptive Ethernet ports, and can expand four optical ports as needed

      （6） Equipped with a 5.5 inch color LCD touch screen, displaying rich and beautiful information, capable of displaying GPS/Beidou, network, system and other status information

      （7） High reliability, MTBF up to 100000 hours

Product Features

      （1） Standard NTP network time synchronization server with six independent NTP network ports, capable of synchronizing clocks of tens of thousands of clients, servers, workstations, and other devices

      （2）Intuitive web monitoring interface for easy remote network login, management, configuration, and maintenance

      （3）Supports heartbeat detection function, and the network ports of two network time server devices can be set to the same IP address, which is redundant backup for each other

      （4）Support network card bonding function, multiple network ports of the same device can be set to the same IP address, and single machine can achieve network card fault backup

      （5）Optional constant temperature crystal oscillator or high-performance rubidium atomic clock as a timing component

      （6）Support for external time reference source input. When it is inconvenient to install the Beidou satellite antenna, handheld time calibration equipment or other external time reference sources can be used as input signals

      （7）Support function customization, can output PPS, TOD, B code and other information

Technical indicators

（1） Supports standard protocols

      （1） NTP v1. v2. v3&v4 (RFC1119&1305)

      （2）SNTP (RFC2030)

      （3）NTP Uni/Road/Multicast, Autokey TIME (RFC868)

      （4）SSH/SCP (Internet Draft)

      （5）SNMP v1, v2, MIBII (RFC1213)

      （6）HTTP/SSL/HTTPS (RFC2616)

      （7）DHCP (RFC2131)

      （8）Telnet (RFC854)

      （9）FTP (RFC959) DAYTIME (RFC867)

      （10） MD5 Authentication (RFC1321)

      （11） RSA Asymmetric Encryption

      （12） IPV4, IPV6, IPv4/IPv6 Hybrid

（2） Performance indicators

      （1）User terminal synchronous timing accuracy: 0.5-2ms (typical value for LAN)

      （2）User capacity: can support tens of thousands of clients

      （3）NTP request volume: greater than 30000 times/second

Timing type Beidou/GPS Beidou receiver indicators

      （1） Frequency: GPS L1; BD2 B1

      （2）Channel: 32 channels

      （3）First positioning time: Cold start:<35s; Hot start<1s, recapture<1s

      （4）Timing accuracy is better than<30ns (RMS)

      （5）Positioning accuracy: 3m (RMS)

Built-in rubidium atomic clock

      （1） Time keeping accuracy<10ms (year)

      （2）Daily average accuracy better than 1E-12

      （3）Daily drift rate better than 3E-12

      （4）Second stability better than 1E-11

      （5）Phase noise ≤ -160dBc/ Hz@10kHz

Built-in constant temperature crystal oscillator

      （1）Punctuality accuracy<1ms (72 hours)

      （2）Daily average accuracy better than 5E-12

      （3）Daily drift rate better than 5E-12

      （4）Second stability better than 2E-11

      （5）Phase noise ≤ -150dBc/ Hz@10kHz

Web monitoring software

      （1） Monitor server CPU, memory, and disk status

      （2）Monitor the number of satellites, locking status, latitude and longitude, altitude, NMEA information, etc

      （3）Monitor NTP service status, deviations, and jitters

      （4）Monitor network status, IP address, subnet mask, network management address, etc

      （5）Monitor client timing status, number of clients, addresses, etc

Unified monitoring software for network time synchronization system

      Provide time monitoring for multiple NTP servers and clients in the system, which can monitor the synchronization and time deviation of NTP servers and clients. Provide alarms and log information for Beidou/GPS lock loss, NTP server out of sync, and synchronization status switching.

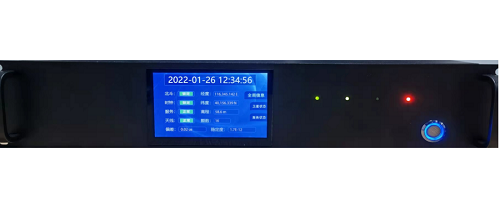

front panel

      （1）LCD screen displays time information, satellite information, network information, system working status, network, connection status, fault alarm, etc

      （2）Three color indicator lights display satellite lock, clock source lock, NTP working status, fault alarm, etc

Deployment method

      In medium to large network environments, it is often necessary to deploy multiple NTP network clock synchronization servers. For example, in a network architecture of a headquarters and multiple branch offices, a typical deployment method is to deploy two primary clock servers in the headquarters network center, with two devices as the main and backup for each other. Generally, products with rubidium clocks are used. The primary clock equipment obtains accurate time from Beidou/GPS or other higher-level network clock sources, providing timing services for the secondary clock server and other required terminals. If it is not convenient to deploy Beidou antennas in the network center computer room of the headquarters, portable handheld clock source handling equipment can be used.

      Secondary NTP network clock synchronization servers can be deployed in various branches. The second level clock synchronization server generally adopts products equipped with constant temperature crystal oscillators, and can also use the same products as the first level clock server. As a secondary time synchronization server, it is necessary to trace the source to an external primary network time server; When the external time source is invalid, the secondary time server can also automatically lock it to the internal navigation satellite time source, continuously providing services to the required clients.
