XTS3000 cost-effective NTP server

A highly available and cost-effective NTP network time server.

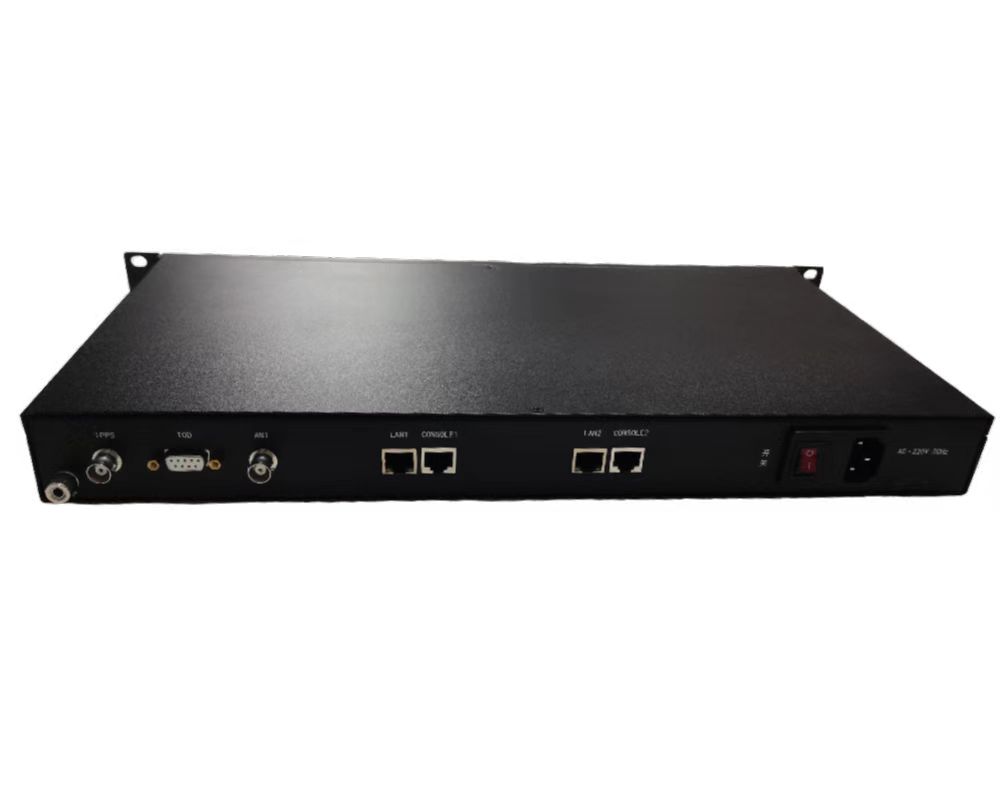

The XTS3000 series NTP network time server is a Linux based network time server independently developed by Beijing Xinsheng Technology Co., Ltd. that supports the NTP/SNTP protocol. The XTS3000 series network time server adopts a Beidou/GPS dual mode receiver, which can receive Beidou/GPS satellite time service signals and obtain standard Beijing time signal information. Through the unique time-frequency signal processing technology of Xinsheng Technology, we provide standard, secure, accurate, and reliable network time service for IP devices (computers, servers, switches, etc.) in computer networks through the standard NTP/SNTP protocol. The XTS3000 series network time server has functions such as firewall protection, MD5 encrypted transmission, heartbeat detection, and real-time monitoring. It also generates 1PPS (second signal) synchronous pulse signals and TOD serial port time information, making it convenient for users to apply time and frequency and measure accuracy. It is a very useful clock device for achieving time synchronization function.

Product Features

(1) Mature solution, reliable performance, and high cost-effectiveness;

(2) Low power consumption, fanless design, suitable for harsh environments;

(3) Fully supports the standard NTP/SNTP protocol version, with precise timing, stable operation, and high security;

(4) Simple configuration management and easy operation;

(5) Support SNMP (Simple Network Management Protocol) network management function.

Product Features

(1) Establish a time reference based on the Beidou/GPS clock signal;

(2) Provide 2-way NTP network timing interface, which can be extended to 4-way, 8-way, 16-way, and 32-way network ports;

(3) Fully supports standard protocols such as NTP v1. v2. v3&v4 (RFC119&1305) and SNTP (RFC2030);

(4) Support network time synchronization for various client operating systems such as Windows, LINUX, UNIX, SUNSOLARIS, IBM AIX, etc;

(5) Support DHCP function, all network devices connected to LAN ports can automatically obtain IP addresses;

(6) Provide firewall protection, improve the security of internal networks, and reduce risks;

(7) Support heartbeat detection function, multiple time servers or multiple network ports can be set to the same IP, which are redundant backups for each other;

(8) Support parameter management methods for Console, SSH encrypted communication, and software monitoring settings;

(9) Serial time service, sending time information of year, month, day, hour, minute, and second every second;

(10) Output timing synchronization signal (1PPS), TTL interface output.

Typical Applications

(1) Various computer network systems, computer application systems, process control management systems, e-commerce systems, B2B online systems, and database storage and maintenance systems;

(2) Unified scenarios and displays for various industrial control times
