XTS2000 frequency distribution amplifier

      The XTS20000 frequency distribution amplifier has the outstanding characteristics of high isolation and wide frequency band, and is a standard frequency signal distribution amplifier device carefully designed by Xinsheng Technology with flexible configuration and high cost-effectiveness. XTS2000 adopts advanced digital circuit design, which can distribute and amplify sine wave signals of any frequency below 200MHz in multiple channels (more than 15 channels). The input signal of XTS2000 is one independent frequency signal, and the output signal is a frequency output signal amplified by several 10 drivers. This device can be widely used in industries such as communication, broadcasting, metrology, and standard time measurement.

    Technical parameters:

      Input signal :  1 channel, frequency range: 0.1~200MHz, sine wave, amplitude: 13dBm, 50 Ω

      Output signal :  15 channels, sine wave, 50 Ω

      Isolation degree :  40dB

      Short stability loss :  5E-10 (1ms), 3E-11 (10ms), 3E-12 (100ms), 1E-13 (1s)

      Noise introduction :  -145dBc/Hz (100Hz), -150dBc/Hz (1kHz), -155dBc/Hz (10kHz)

      Front panel description :  15 way indicator lights, power switch

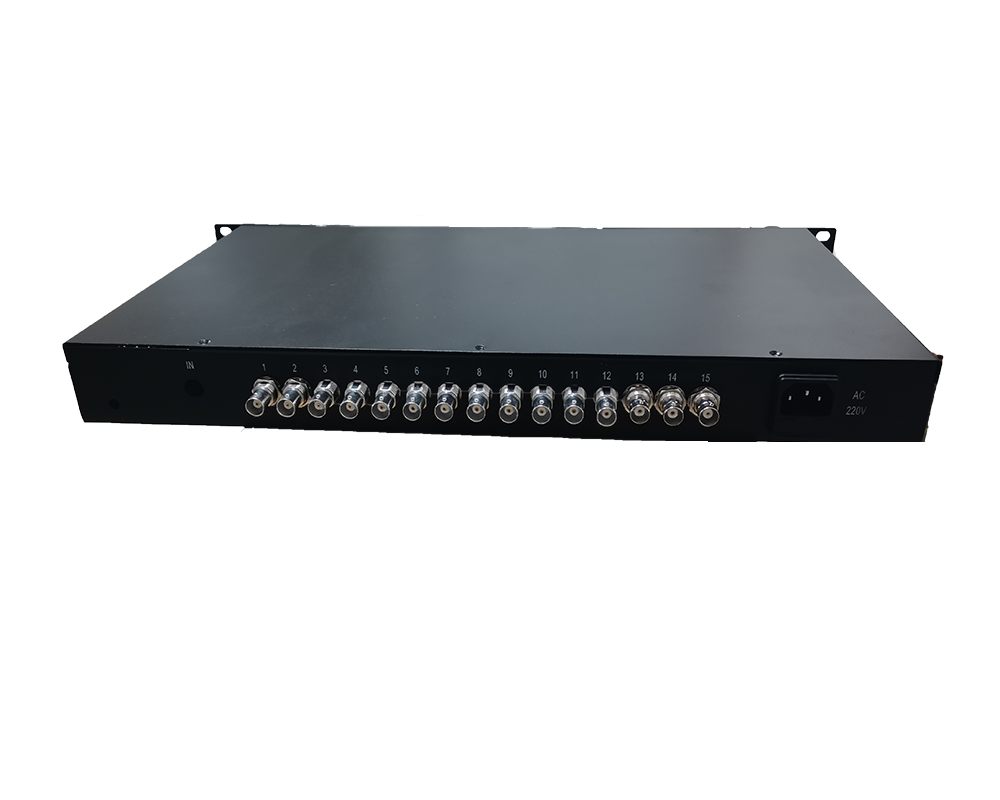

      Rear panel description :  Input signal interface, 15 output signal interfaces, 220V 50Hz power cord socket

      Physical environment parameters :  chassis size, 1U standard chassis; Weight, 1.5Kg; Working temperature, -10 ℃~+50 ℃; Storage temperature, -40 ℃~+80 ℃; Power consumption, 5w
